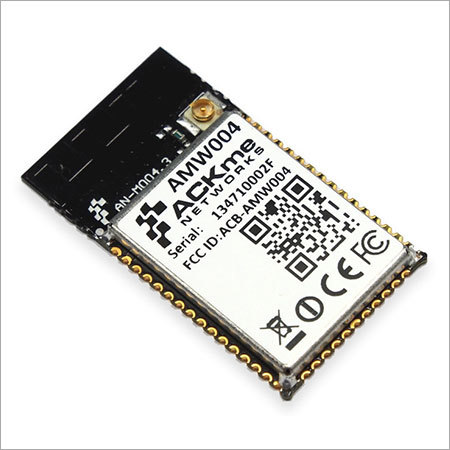

Standalone Wifi Module

Standalone Wifi Module
Standalone Wifi Module
Product Code : AMW004
Brand Name : ACKME NETWORKS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Minimum Order Quantity
Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID)
  • Delivery Time
  • 3 Days
  • Packaging Details
  • Polybag
  • Main Domestic Market
  • All India
Product Description

Since our inception in 2008, we have been engrossed in supplying an optimum quality gamut of Standalone Wifi Module. The provided module is manufactured with the use of quality-approved raw materials and pioneering techniques by experts. The offered module is used to provide excellent wifi network connectivity at varied places. Moreover, our precious clients can avail this Standalone Wifi Module at reasonable rates from us.

Features:

  • Optimum sensitivity
  • Longer life
  • Excellent network security
  • Sturdy design

Standalone Wifi Module

Our AMW004 'Wallaby' module is a fully certified small form factor, low power WICED-based Wi-Fi networking module perfectly suited to deeply embedded applications requiring medium/high data throughput in medium to high volume.

The module runs an embedded TCP/IP networking stack with SSL/TLS/HTTPS security and an onboard u.FL and PCB trace antenna all in a physical footprint of just 31.2 x 17.8mm (1.25" x 0.7").

Wallaby ships with a licensed version of ZentriOS which is the connectivity operating system of choice for resource constrained Internet of Things (IoT) devices. ZentriOS accelerates time-to-market by providing a common software foundation across multiple product lines. The OS provides integrated security, sophisticated network connectivity features, file management, rich peripheral interfaces, and much more. By abstracting the underlying complexity of connectivity, developers can focus on what they do best - build great products

ZentriOS provides the secure connectivity foundation that enables a device to wirelessly connect and be delivered to market in weeks versus months/years. It can be used either as a serially connected networking peripheral to a master subsystem or in the core system microcontroller as the central operating system with a dedicated and encrypted application sandbox. Both scenarios enable optional  optional product portfolio manageability through the device management service, ZentriDMS, and can use any of Zentri's own cloud products or those from other leading IoT cloud vendors such as Amazon’s AWS IoT platform, IBM Bluemix, and Microsoft’s Azure IoT Suite.

ZentriOS is a component of the Zentri product family which includes ZentriDMS, ZentriCloud, and Zentri Mobile App SDK that comprise the Zentri Secure Connected Product Platform to transform product purchases into secure product experiences.

FEATURES:

  • Standalone WICED-based Wi-Fi networking module including apps processor and onboard antenna
  • Ultra-low power mode for battery operation
  • Onboard commercial IPv4/IPv6 TCP/IP stack includes SSL/TLS/HTTPS security
  • Includes Sensors.com cloud library for device monitoring and control
  • Communications interfaces: UART, SPI, I2C
  • User programmable GPIOs, ADCs, DACs and timers
  • Real-time clock automatically syncs with network time
  • Support for simultaneous client (STA) and access point (softAP) modes
  • Automatic (or manual) secure upgrades via wireless network, FTP or serial interface
  • Configurable via serial or wireless interface with user-friendly ASCII commands
  • Supports Wi-Fi security types: Open, WEP, WPA, WPA2-AES and WPA2-mixed modes
  • Wi-Fi Protected Setup (WPS) for one-step push-button connection to your AP
  • May also be reprogrammed for use with Broadcom's WICED SDK
APPLICATIONS:

Industrial, M2M and Automation

  • Environmental Monitoring
  • Energy Monitoring
  • Wireless sensing, remote data logging
  • HVAC, power, light & thermostat control
  • Appliance control

Security

  • Cameras, Door/Window monitoring
  • Alarms
  • Door and entry control
Consumer, Health & Fitness
  • Fitness equipment
  • Home health monitoring
  • Medical devices
  • Audio
  • Toys
  • Robots

Technical Specification :

Part Number

Power Output

Interfaces

Package

Antenna

Size

Cert

AMW004 (Wallaby)

+19dBm (max)

UART, SPI, I2C, USB, JTAG/SWD

Surface mount module

On-board PCB trace and u.FL connector for external antenna

31.8 x 17.8mm (1.25" x 0.7")

FCC, IC, CE

Networking Standards

IEEE 802.11 b/g/n/d/e/h/i/j

802.11 data rates

802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS0 - MCS7

Frequency Band

2.412 - 2.484 GHz (Channels 1-13)

Wi-Fi Security

Open, WEP-40, WEP-104, WPA, WPA2-PSK, WPA/WPA2-mixed

Network Protocols

ARP, ICMP, DHCP client/server, DNS, NTP, SMTP
UDP, TCP, HTTP client/webserver, Sensors.com

Network Security

SSL3.0/TLS1.2, HTTPS

Comms Interfaces

UART, SPI, I2C, USB, JTAG/SWD

Data Throughput

Up to 10 Mbit/s over UART and SPI

Communications Range

>1000ft (330m) line of sight

Microprocessor & Memory

ARM CM4 @ 120MHz with integrated 1MB flash and 128kB RAM, onboard 8Mbit (1MByte) SPI-serial flash

Peripherals

I2S, GPIO, ADC, DAC, PWM

Real Time Clock

Time-of-day, 200-year calendar, ultra low power alarms/wakeup

RF Transmit Power

+19dBm (11b max.), +16dBm (11g max.), +14dBm (11n max.)

Antenna

Onboard PCB and u.FL connector for external antenna

Power consumption

Standby: 1.85uA
Sleep: 28uA
Wi-Fi Powersave: 0.77mA
Active Rx: 6.9mA (1Mbit/s UDP)
Active Tx: 12.5mA (1Mbit/s UDP)

Supply voltage

3.3V +10%

Operating Temperature

-30C to +85C

Size

17.8 x 31.8 x 3.1 mm (0.7" x 1.25" x 0.12")

Weight

2.55 grams (0.09 oz)

Certifications

FCC, IC, CE

Software

Pre-preprogrammed with ACKme WiConnect serial Wi-Fi application
