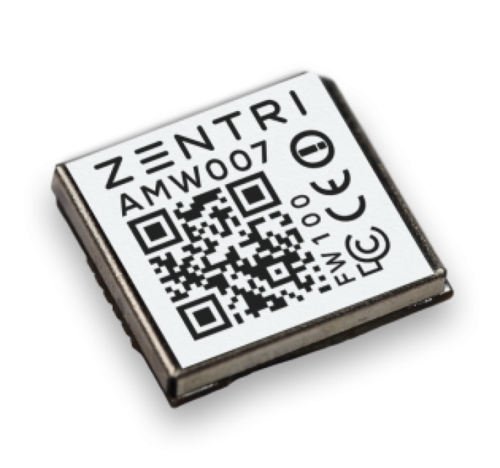

Wifi module with ultra low power

Wifi module with ultra low power
Wifi module with ultra low power
Product Code : AMW007
Brand Name : Zentri
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

The AMW007 'Spectre', a Wi-Fi networking module complete with full regulatory certification designed for low cost IoT edge devices.The AMW007 module from Zentri is an advanced stand-alone Wi-Fi and networking solution.The Wi-Fi device includes an integrated RF transmit power amplifier and provides superior Wi-Fi performance and full compatibility with all 2.4GHz 802.11b/g/n Wi-Fi networks.The module is powered by a single 3.3V power supply and various powersave modes offer ultra-low power operation.The module has FCC & IC modular approval for use in the United States and Canada, CE approval for use in Europe and related approvals for use in other countries.

FEATURES
  • Self-contained ultra-low power Wi-Fi module with secure TCP network stack.

  • Integrated SPI-serial flash for software upgrades and user accessible read/write file system

  • Single band 2.4GHz IEEE 802.11b/g/n 1x1 Wi-Fi transceiver

  • Includes support for all Wi-Fi security modes in-cluding Open, WEP, WPA, and WPA2-PSK

  • 32-bit processor operating up to 80MHz core frequency

  • Wake-up: Wake pin for ultra-low power operation

  • Interfaces (Some interfaces share module pins)

    • UART: 1 x 4-wire, 1 x TX only up to 4.5Mbit/s

    • SPI : SPI-Slave/Master (40MHz)

    • GPIO: Up to 16 GPIOs (overlaid with peripherals)

    • A/D converter: 1 x 10-bit resolution

    • PWM: Up to 4 PWM outputs

APPLICATIONS

Industrial, M2M and Automation

  • Environmental Monitoring
  • Energy Monitoring
  • Wireless sensing, remote data logging
  • HVAC, power, light & thermostat control
  • Appliance control

Security

  • Door/Window monitoring
  • Alarms
  • Door and entry control
Consumer, Health & Fitness
  • Fitness equipment
  • Home health monitoring

Operating Voltage

 3.3V (typical)

 Operational Temperature Range

 -40°C to +85°C

 Size

 12 x 11 x 1.8mm (0.47 x 0.43 x 0.08)

 Weight

 0.03 oz (1g)

 Current consumption

 @ 3.3V, 25°C



  •  Standby : 0.9mA



  • Deep sleep / RTC : 20 / 60



  • Sleep (Memory Retention) : 0.31mA



  • Wi-Fi Powersave : 0.86mA (DTIM = 3)



  • Active receive : 65mA

  • Active transmit :
    • 100mA @ +0dBm
    • 200mA @ +18dBm
Maximum RF transmit power
  • 802.11b/g : +20 dBm
  • 802.11n : +16 dBm
Minimum Receive sensitivity
  • 802.11b/g : -93 dBm
  • 802.11n : -71 dBm

Embedded Firmware

Pre-preprogrammed with ZentriOS Lite serial Wi-Fi application



Trade Information
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID)
  • Delivery Time
  • 3 Days
  • Packaging Details
  • Polybag
  • Main Domestic Market
  • All India
